Wide-span Roll-forming Machine | Produces Wide-span IBR Sheeting | Revaro

17 views

Price on request

N/A

Including VAT

Wide-span Roll-forming Machine | Produces Wide-span IBR Sheeting | Revaro

More Coming Soon!

Description

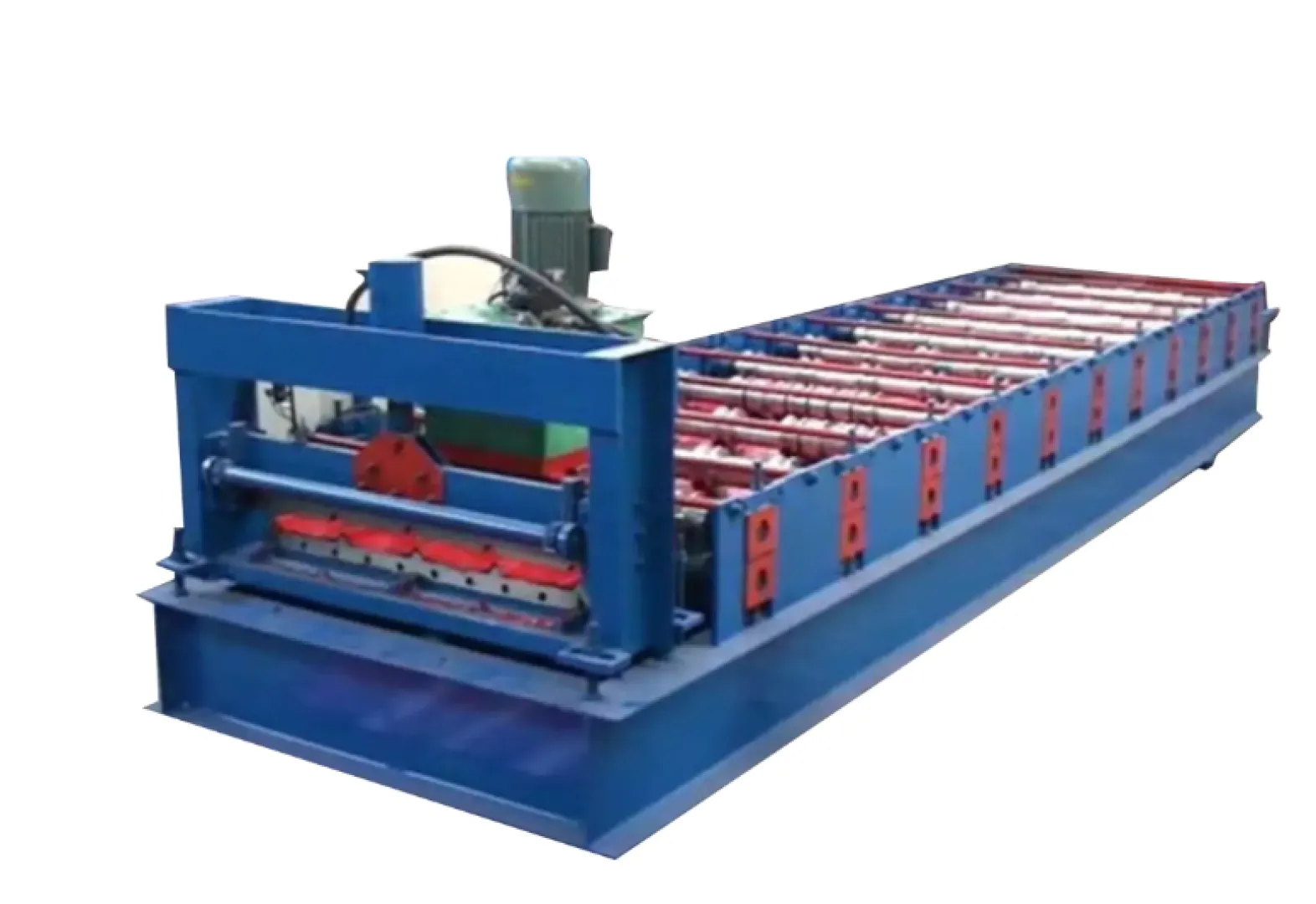

The Revaro Widespan Roll-Forming Machine is engineered to deliver high-quality GI/GL/PPGI/PPGL profiles with precision and efficiency. Designed for versatility, this machine processes plates up to 925mm in width and 0.3-0.8mm in thickness. Key features include:

De-Coiler Capacity: Manual operation, supporting up to 5 tons of raw material.
Forming Rollers: 11 rows with 70mm diameter, constructed from Carbon Steel 45#.
Cutting System: Hydraulic mould cutting, featuring a Cr12 cutting blade with a ±2mm cutting length tolerance.
Production Speed: Capable of producing 8-12 meters per minute.
Control System: Delta PLC control for precise operation.
Structure: Built with robust 300 H steel and 14mm side panels, ensuring durability.

With a total weight of approximately 3.8 tons, the machine's dimensions are 5.5m x 1.45m x 1.1m, operating on a 380V, 50Hz, 3-phase power supply. Certified with CE/ISO/TUV, the Revaro Widespan Roll-Forming Machine is an ideal choice for efficient and reliable roll-forming production.
