Product Introduction

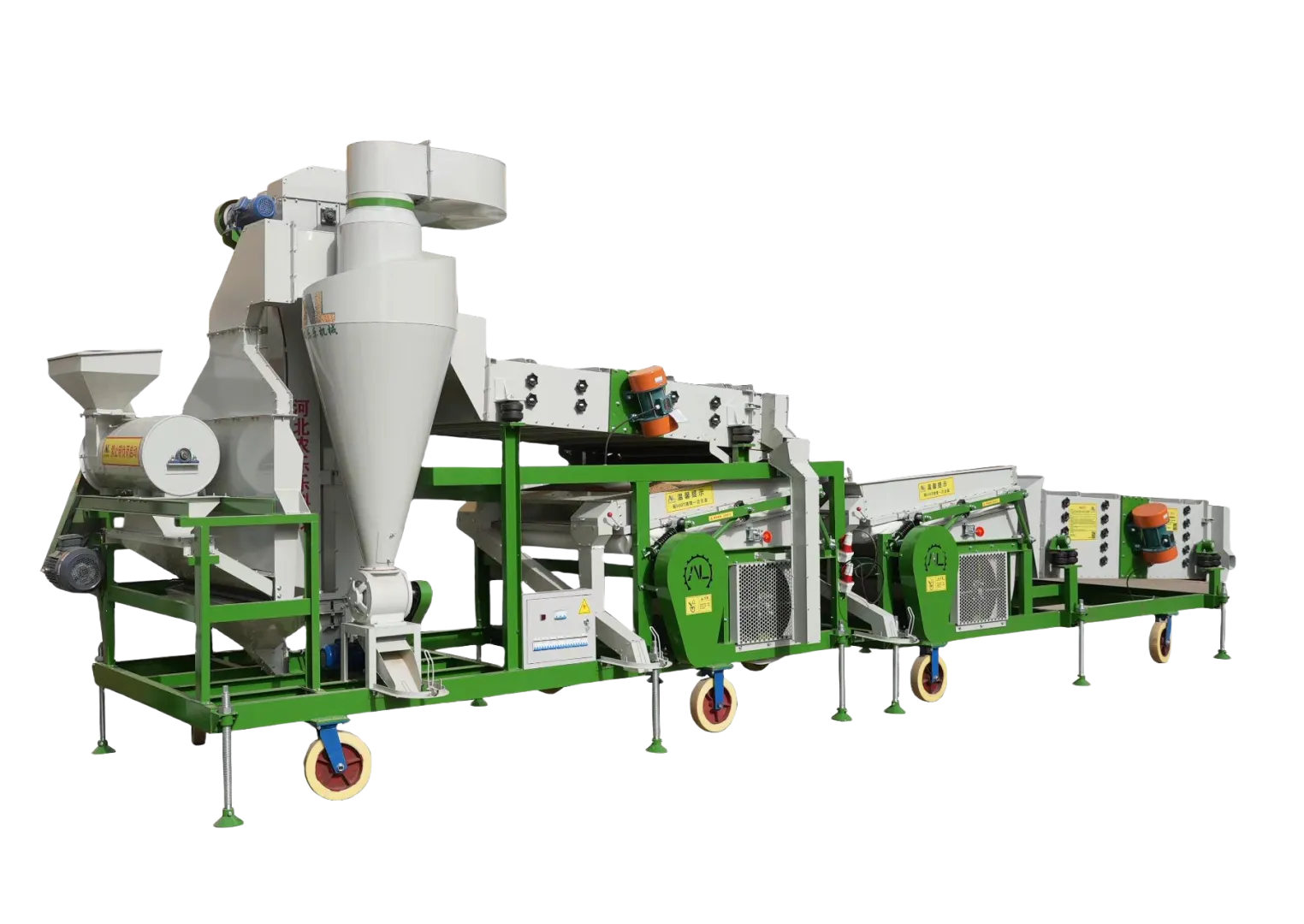

The 5XFZ-20E Double Specific Gravity Cleaner is a brand-new model developed by our company based on long-term market research and customer feedback. Built with mature technology, this machine integrates multiple functions including dehulling, seed de-bearding, air separation & dust collection, damage-free bucket elevating, screening, gravity table separation and grain grading.

Product Characteristics

• Mobile & energy-saving: Integrated modular design for easy operation, flexible movement, as well as space and power saving.

• High Cleaning Rate: Equipped with a screw-type dust collection system, large-aperture primary cleaning screen and vertical aspiration channel (air screen), which can effectively remove light, large and small impurities, reduce the load of the gravity table, and achieve higher output with a cleaning rate of over 98.5%.

• Eco-friendly Dust Control: Large screw-type dust collection system with multi-point dust suction, which can effectively reduce dust concentration in the working area.

• Wide Applicability: Suitable for cleaning and grading of beans, wheat, corn, sorghum, rapeseed, melon seeds and other grain crops.

Machine System Screening Principle

• Air Screen Separation: The material evenly enters the vertical aspiration channel (air screen) through the grain distribution box. By adjusting the air speed via the air control handle, the material forms a suspended state, and light impurities (without valuable grains) are removed by the large-capacity dust collector.

• Gravity Table Separation: By adjusting the air volume and baffle height, the machine separates materials based on density difference, thus effectively removing shrivelled, sprouted, moldy and immature grains.

• Grading Screen Separation:This unit sorts grains by geometric size, and is equipped with replaceable sieve plates to adapt to different grain types and varieties.

Main Technical Parameters
