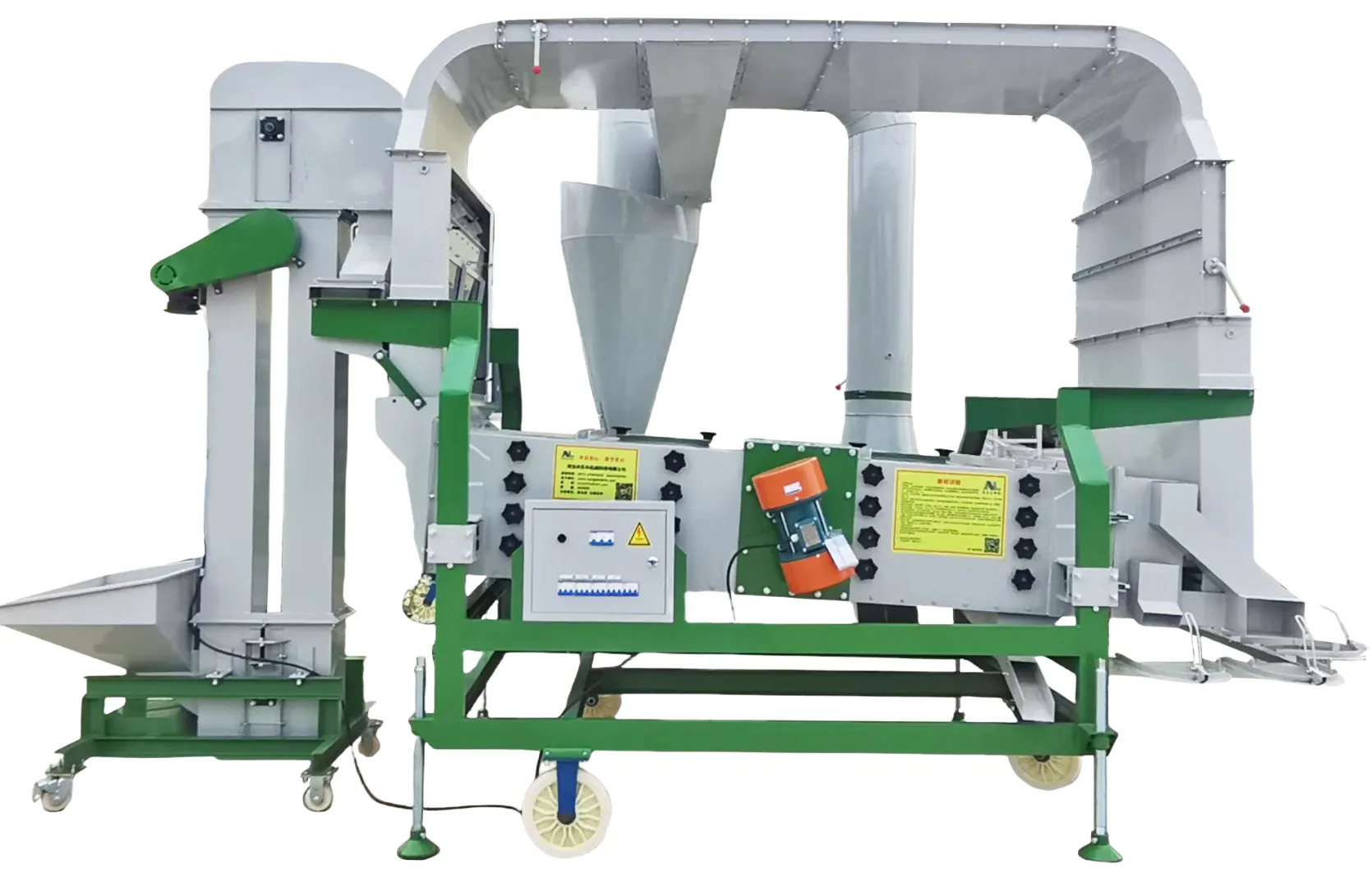

5XZC Series Overbridge Type Air Screen Cleaning Machine
Price on request
N/A
Excluding VAT
Description
PRODUCT INTRODUCTION
The material enters the front vertical aspiration channel (air screen) through the bucket elevator. Based on the difference in aerodynamic characteristics and suspension speed between the target grains and impurities, the material first undergoes air separation to remove light impurities. Then the material enters the grading screen, where sieve plates of different specifications can be replaced according to the material size to remove impurities. Finally, the material enters the rear vertical aspiration channel for secondary air separation to remove residual light impurities, which greatly improves the cleaning effect and processing capacity.
Icon Label: Visual Operation
MAIN FEATURES
• Dual Air Screens & Two-stage Air Separation: Delivers high screening efficiency.
• Large Screen Surface Design: Further enhances material processing capacity.
• Multi-purpose Machine: Sieve plates can be replaced according to different materials, reducing equipment investment cost.
• Independent Feeding Device: Can be freely matched with various feeding equipment.
Applicable Scope
It is suitable for screening various grains and agricultural and sideline products, such as sesame, sunflower seeds, buckwheat, hemp seeds and other materials.
Main Technical Parameters
Model | Seed Productivity （t/h） | Commercial Grain Productivity （t/h） | Total Power （kW） | Overall Dimensions (Length × Width × Height) mm | Screen Surface Area Length × Width (mm) | Screen Layers | Remarks |
5XZC-10SX | 5 | 5-7 | 10.1 | 5074×2910×3450 | 2400×1250 | 4 layers | Environment-friendly |
