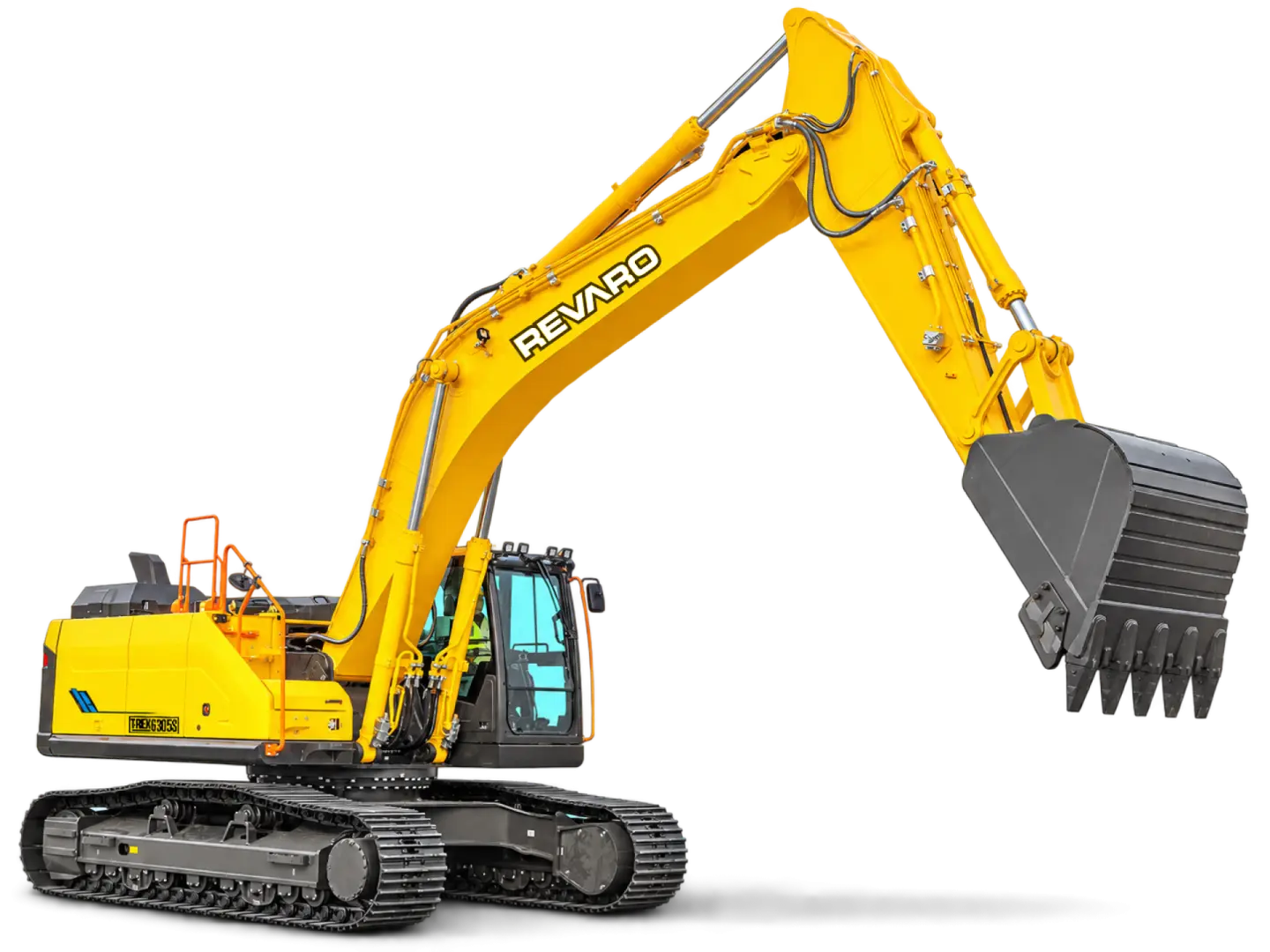

T-REX6305S 30.4 Ton Excavator | Revaro
Price on request
N/A
Including VAT
Description
Specification | Value |
|---|---|
Operating Weight | 30400kg |
Bucket Capacity | 1.6m³ |
Average Ground Pressure | 57.6kPa |
Slewing Speed | 9.4r/min |
Max. Digging Force | 205.5kN |
Engine Model / Drive Motor Model | BFM8-25T2 |
Engine Power | 215kW |
Fuel Specifications and Filling Amount | 510L |
Overall Length | 10510mm |
Overall Width | 3190mm |
Overall Height | 3380mm |
Boom Length | 6200mm |
Wheeltrack | 600mm |
Arm Length | 3050mm |
Wheelbase | 4015mm |
Crawler Wheelbase / Wheelbase | 4015mm |
Max. Digging Radius | 10710mm |
Max. Digging Depth | 7150mm |
Max Discharge Height | 7320mm |
Overall Length During Transfer | 10510mm |
Max. Digging Depth under length of Bottom Surface 2.5m | 6970mm |
Max. Digging Height | 10710mm |
Overall width of Upper Assembly | 2880mm |
Rear Slew Radius | 3140mm |
Min. Ground Clearance | 508mm |
Track Shoe Width | 600mm |
Max. Digging Radius of reference Ground | 10510mm |
Min. Front Turning Radius | 3950mm |
