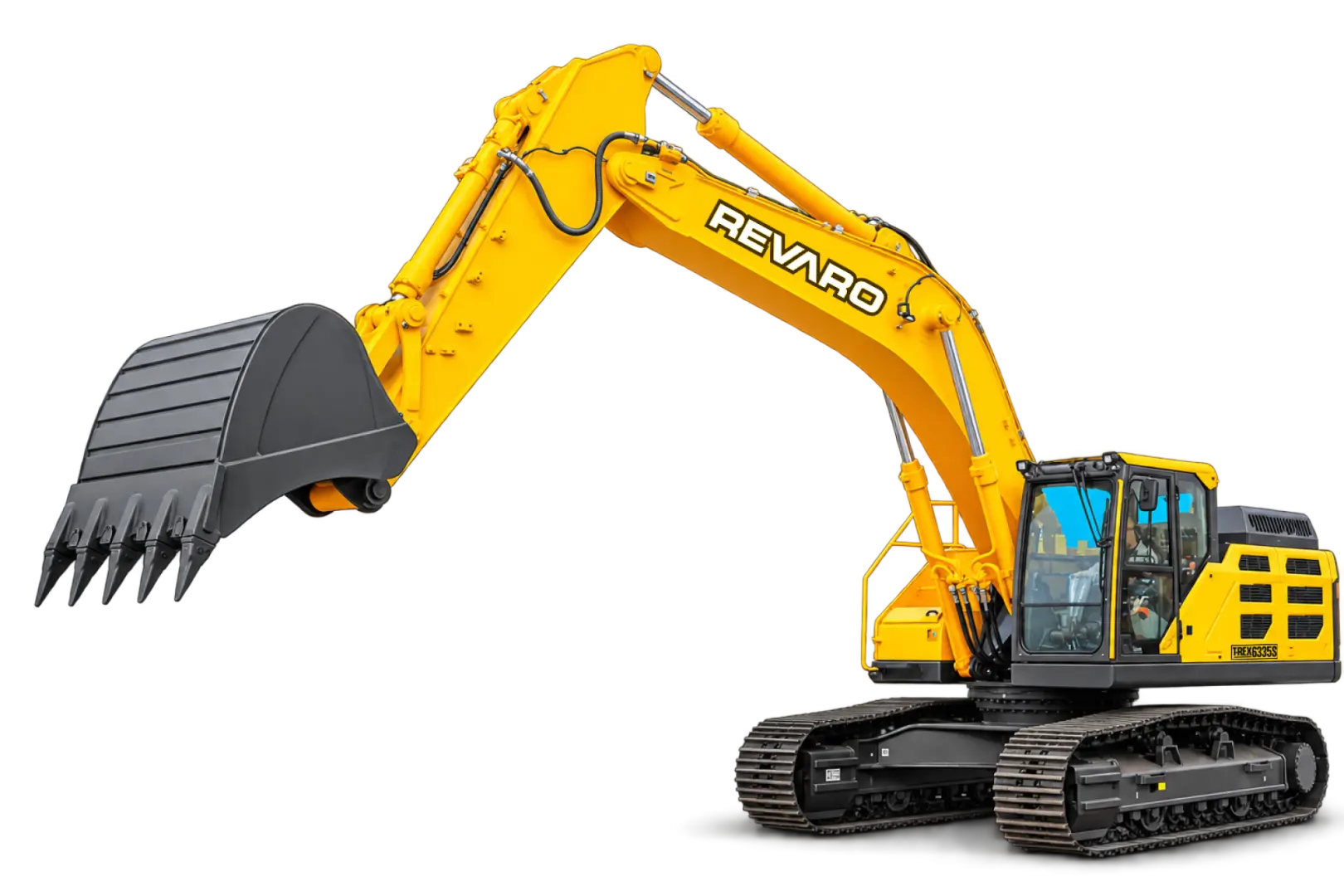

T-REX6335S 35 Ton Excavator | Revaro
Price on request
N/A
Including VAT
Description
Specification | Value |
|---|---|
Operating Weight | 34800kg |
Bucket Capacity | 1.9m³ |
Bucket Capacity Range | 1.6~2.0m³ |
Ground Pressure Ratio | 63.8kPa |
Slewing Speed | 10.7r/min |
Maximum Digging Force | 222.6kN |
Altitude | 2000m |
Wading Depth | 815mm |
Engine Model / Drive Motor Model | BFM8-29T2 |
Engine Power | 215kW |
Maximum Flow Rate | 2 x 290 + 25.5L |
Fuel Specification and Filling Amount | 590L |
Overall Length | 11000mm |
Overall Width | 3190mm |
Overall Height | 3450mm |
Boom length | 6200mm |
Wheel Track | 2590mm |
Arm Length | 3200mm |
Wheelbase | 4130mm |
Crawler Wheelbase / Wheelbase | 4130mm |
Max. Digging Radius | 10650mm |
Max. Digging Depth | 7220mm |
Max. Discharge Height | 10045mm |
Overall Length During Transfer | 11000mm |
Bucket Width (with Edge Blade) | 1670mm |
Max. Digging Depth under Length of Bottom Surface 2.5m | 7025mm |
Max Digging Height | 10045mm |
Overall Width of Upper Assembly | 2950mm |
Overall width of Chassis | 3190mm |
Overall Height to Cab Top | 3150mm |
Overall Height to Hood Top | 2885mm |
Ground Clearance of Upper Assembly | 1215mm |
Overall Length of Crawler | 5070mm |
Track Shoe Width | 2590mm |
Min. Ground Clearance | 520mm |
